Please note: Images are for illustration purposes only. Actual product supplied may differ.
Product name: Hilti TE 80-ATC/AVR Combi Hammer
Product code: 02231
- Active Torque Control (ATC) stops the motor almost instantly if the bit binds and housing begins to rotate too quickly, reducing injury risk
- Active Vibration Reduction (AVR) for the lowest vibration and highest productivity in this tool class
- Optimized clutch for demanding drilling and coring applications
- 360 rpm drilling speed for maximum performance in repetitive drilling applications
- For technical information on our range of Hilti products call <b>0844 815 6322</b>
- Brand: Hilti
- Diameter: 45mm
- Drilling Range: 20-40mm
- Height: 312mm
- Impact Rate: 4600ipm
- Length: 587mm
- Power Supply: Electric
- Rotation Speed: 380rpm
- Voltage: 110V
- Watts: 1700W
- Weight: 9.7kg
- Wet or Dry Operation: Dry
- Width: 141mm
Protection required against high noise levels. Earplugs are suitable for short-term work.
Protection required against high noise levels. Earplugs are suitable for short-term work.
We recommend you wear steel toe protection when using this product.
Gauntlets, PVC, cotton or rigger gloves are required with this item for hand protection.
Protect against falling objects. Compulsory on site.
Residual Current Devices protect form electric shock. Strongly recommended for electrical equipment used outdoors or in damp conditions.
We recommend using a Dust Extractor where you see this symbol
Medium vibration risk - for tools that may be used for up to 2 hours before reaching vibration Exposure Limit Value (ELV)
You will need a vehicle at least the size of an estate car to collect this item.

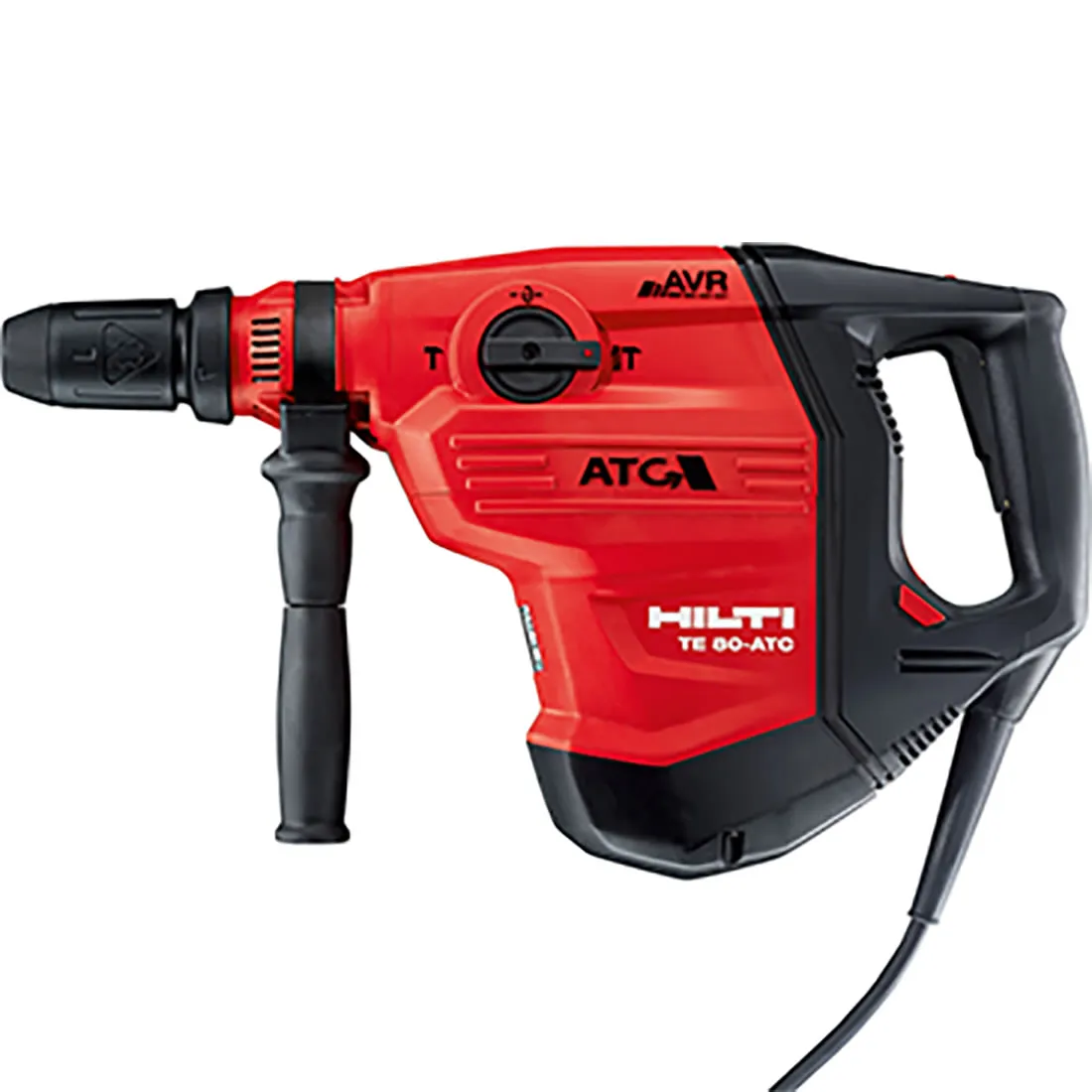

Hilti TE 80-ATC/AVR Combi Hammer

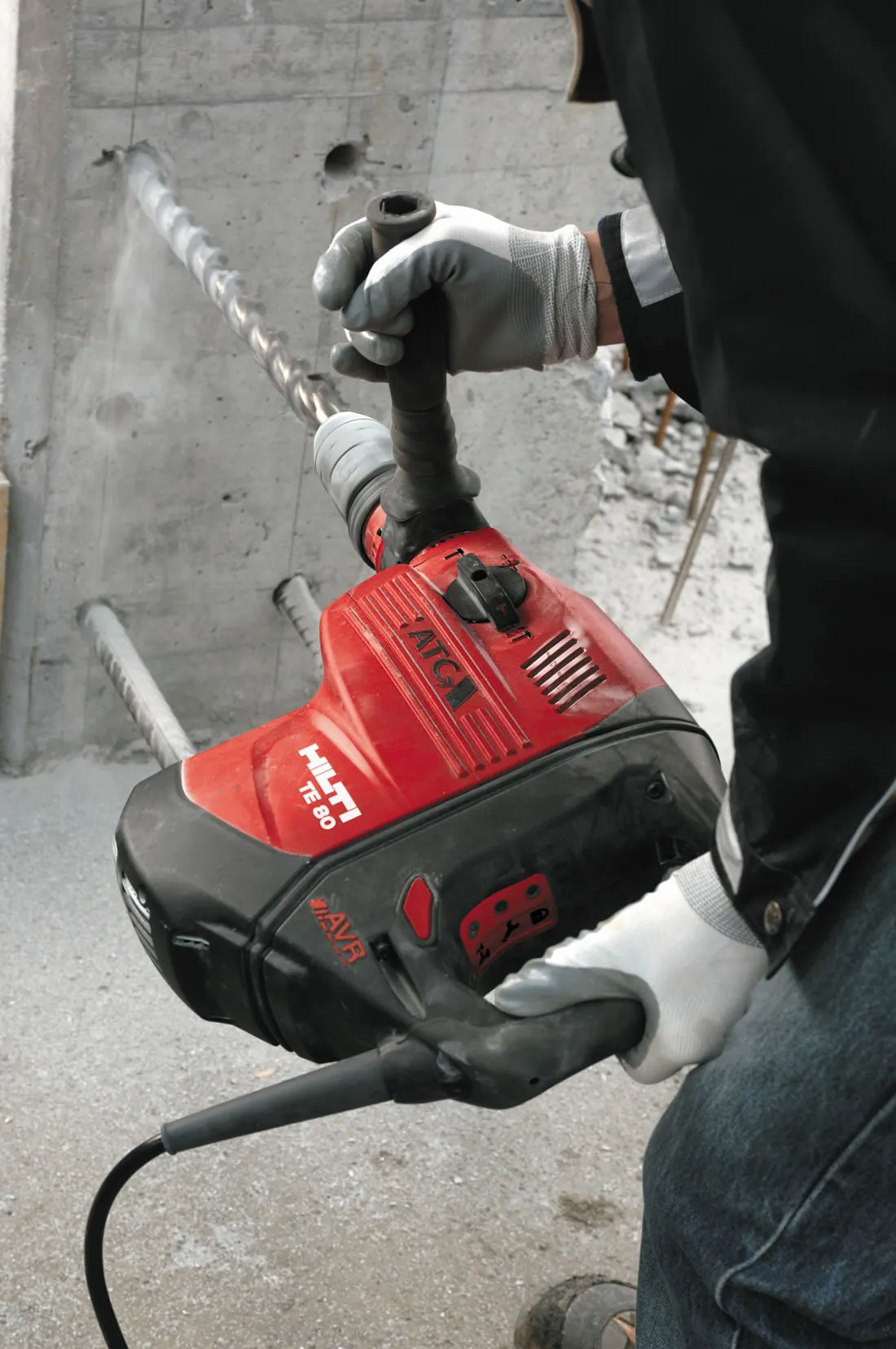

Precise control and operator comfort is guaranteed with Heavy Duty ATC Combi-Hammer, this machine is capable of hammer drilling up to 150 mm cores in concrete, stone and masonry.
Hire from
£33.25 £27.71 ex.VAT
Average hire period: 6 days
You have selected a 7 day hire
Product name: Hilti TE 80-ATC/AVR Combi Hammer
Product code: 02231
- Active Torque Control (ATC) stops the motor almost instantly if the bit binds and housing begins to rotate too quickly, reducing injury risk
- Active Vibration Reduction (AVR) for the lowest vibration and highest productivity in this tool class
- Optimized clutch for demanding drilling and coring applications
- 360 rpm drilling speed for maximum performance in repetitive drilling applications
- For technical information on our range of Hilti products call <b>0844 815 6322</b>
- Brand: Hilti
- Diameter: 45mm
- Drilling Range: 20-40mm
- Height: 312mm
- Impact Rate: 4600ipm
- Length: 587mm
- Power Supply: Electric
- Rotation Speed: 380rpm
- Voltage: 110V
- Watts: 1700W
- Weight: 9.7kg
- Wet or Dry Operation: Dry
- Width: 141mm
Protection required against high noise levels. Earplugs are suitable for short-term work.
Protection required against high noise levels. Earplugs are suitable for short-term work.
We recommend you wear steel toe protection when using this product.
Gauntlets, PVC, cotton or rigger gloves are required with this item for hand protection.
Protect against falling objects. Compulsory on site.
Residual Current Devices protect form electric shock. Strongly recommended for electrical equipment used outdoors or in damp conditions.
We recommend using a Dust Extractor where you see this symbol
Medium vibration risk - for tools that may be used for up to 2 hours before reaching vibration Exposure Limit Value (ELV)
You will need a vehicle at least the size of an estate car to collect this item.
Questions
This heavy-duty combi hammer is designed for drilling and coring in concrete, stone, and masonry, capable of hammer drilling up to 150 mm cores.
ATC stands for Active Torque Control on the Hilti TE 80-ATC/AVR Combi Hammer, which stops the motor almost instantly if the drill bit binds. This helps reduce the risk of injury from tool kickback.
AVR stands for Active Vibration Reduction, which lowers vibration exposure and improves comfort, allowing operators to work more productively for longer periods.
It has a drilling range of 20–40 mm and can handle heavy-duty applications with a maximum core size of 150 mm.
The Hilti TE 80 operates on a 110V electric supply with a powerful 1700W motor.
The tool weighs 9.7 kg, offering a good balance between power and control.
It has a drilling speed of 380 rpm, optimised for demanding repetitive drilling applications.
Torque control helps prevent the drill from twisting dangerously if the bit gets stuck, protecting both the user and the equipment.
This model is designed for dry operation only.
We recommend steel toe protection, gloves, a hard hat, and ear protection due to noise, vibration, and falling object risks.
Yes, but it’s strongly recommended to use a Residual Current Device (RCD) to minimise the risk of electric shock.
It has a medium vibration level, allowing use for up to 2 hours before reaching the Exposure Limit Value (ELV).
We recommend using a dust extractor where indicated to maintain a cleaner and safer work environment.
They reduce operator fatigue, lower the risk of hand-arm vibration syndrome, and allow longer and safer working times.
A vehicle at least the size of an estate car is needed to safely transport the equipment.
