Civil engineers, steel erectors, builders and contractors will find this complete drilling rig the tool for producing quick, clear and accurate holes up to 250mm diameter in concrete, brickwork and block. It’s air-cooled, heavy duty drive unit delivers consistent performance, whilst variable speed control allows for optimal drilling in diverse materials. The folding rig features stepless adjustment for angle cutting up to 45 degrees and the optional vacuum pump allows for secure temporary fixing.
There are no custom specifications for this product
There is no custom safety information for this product

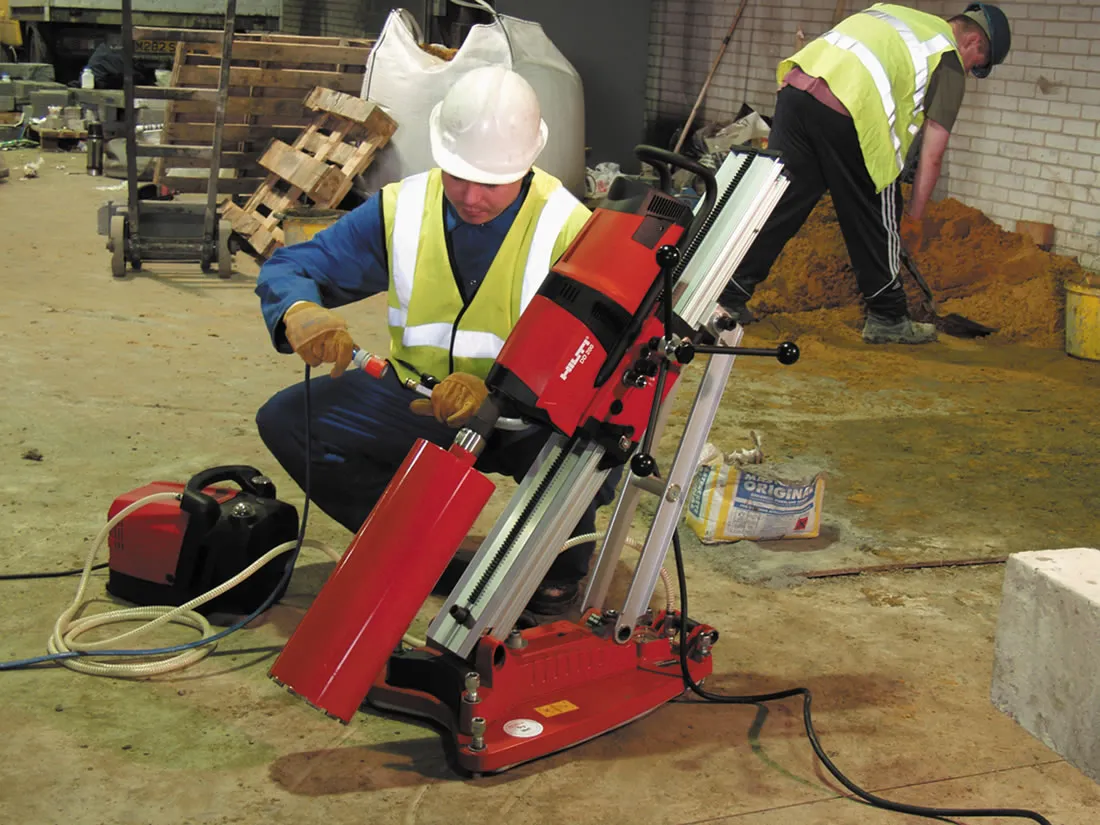

250mm Diamond Drilling Rig DD200
Civil engineers, steel erectors, builders and contractors will find this complete drilling rig the tool for producing quick, clear and accurate holes up to 250mm diameter in concrete, brickwork and block. It’s air-cooled, heavy duty drive unit delivers consistent performance, whilst variable speed control allows for optimal drilling in diverse materials. The folding rig features stepless adjustment for angle cutting up to 45 degrees and the optional vacuum pump allows for secure temporary fixing.
There are no custom specifications for this product
There is no custom safety information for this product
Questions
This rig is designed for precise core drilling in concrete, brick, and other masonry materials, making it ideal for construction and civil engineering projects.
The DD200 can create clean, accurate holes up to 250mm in diameter.
Civil engineers, builders, contractors, and steel erectors commonly use this rig for creating large-diameter openings in structural materials.
No, the rig allows for core drilling in ceilings, walls, and floors without hammering or vibration, helping to maintain structural integrity.
The machine operates on a 110V electric supply and has a 2400 W air-cooled, heavy-duty drive unit for consistent performance.
Yes, the DD200 features three-speed gearing and variable speed control for optimal drilling in different materials.
The rig supports a drilling range of 50–250mm, suitable for a variety of applications.
Yes, the folding rig includes stepless angle adjustment up to 45 degrees for flexible and precise drilling.
We recommend wearing ear protection, gloves, and a hard hat to protect against noise, vibration, and falling objects.
Yes, but it’s strongly recommended to use a Residual Current Device (RCD) when operating electrical equipment outdoors or in damp conditions.
The DD200 weighs 34 kg, so appropriate lifting equipment or assistance may be required during transport and setup.
A vehicle at least the size of an estate car is required to collect this item safely.
Diamond drilling rigs offer precise, vibration-free drilling, allowing clean, large-diameter holes in tough materials without damaging the surrounding structure.
Yes, the rig is designed to be easy to handle, understand, and operate, making it suitable for both experienced operators and trained newcomers.
Yes, the optional vacuum pump allows for secure temporary fixing, ensuring stability and accuracy during operation.
