What is a Beam Trolley for Aluminium Gantry 2T used for?

A Beam Trolley for Aluminium Gantry 2T provides a movable suspension point on the gantry beam, allowing suitable loads to be lifted and moved along the beam with greater control.

What is an Aluminium Gantry used for?

An Aluminium Gantry is a freestanding lifting structure used to help raise, lower and position heavy materials or equipment, such as machinery, concrete blocks and roofing materials, when used with suitable lifting accessories.

Are Aluminium Gantries suitable for beginners?

Yes, aluminium gantries are a useful lifting solution for smaller trade and site tasks where a temporary, freestanding lifting point is needed. They should always be assembled and used correctly by competent users following safe lifting practices.

Why choose an Aluminium Gantry instead of fixed lifting points?

Aluminium Gantries are portable and freestanding, making them ideal when a permanent overhead lifting point is not available or when lifting is needed in different areas.

What is the benefit of using a Beam Trolley with an Aluminium Gantry?

The Beam Trolley allows the suspended load to move along the beam, helping improve positioning and control while reducing the need to manually move heavy items.

Are Aluminium Gantries easy to assemble and move?

The gantries are designed to be lightweight compared with fixed steel lifting structures, fold for easier transport and require two-person assembly. Always check the product weight and transport requirements before collection.

Can Aluminium Gantries be used on different job sites?

Yes, because they are portable and freestanding, aluminium gantries can be used across different suitable locations, including workshops, construction areas and maintenance sites.

What safety gear should I wear when using an Aluminium Gantry or Beam Trolley?

You should wear suitable PPE, including steel toe footwear, protective gloves and head protection. Always follow site safety requirements and check that the lifting setup is secure before use.

Are Aluminium Gantries suitable for vertical lifting only?

Yes, these products should only be used for vertical lifting and lowering. Do not side-pull or use the load chain or cable as a sling.

Can beginners safely operate a Beam Trolley for Aluminium Gantry 2T?

The trolley must be correctly fitted to the beam, and all lifting accessories should be properly attached, checked and suitable for the load being lifted.

Do Aluminium Gantries help reduce manual handling risks?

Yes, when used correctly, aluminium gantries can help lift and position heavy items mechanically, reducing the need for manual handling and helping improve site safety.

Can Aluminium Gantries be used with different lifting accessories?

Yes, aluminium gantries can be used with suitable lifting accessories such as beam trolleys, hoists and shackles, provided all equipment is compatible and correctly rated for the load.

Are Aluminium Gantries suitable for both indoor and outdoor use?

Yes, they can be used in suitable indoor or outdoor environments, provided the ground is firm, level and stable, and the equipment is assembled correctly.

Is specialist transport needed for Aluminium Gantries and Beam Trolleys?

Due to the size and weight of the gantry system, collection requires a 7.5-ton truck.

Please note: Images are for illustration purposes only. Actual product supplied may differ.

Product name: Aluminium Gantry 2.5m Beam

Product code: 69343

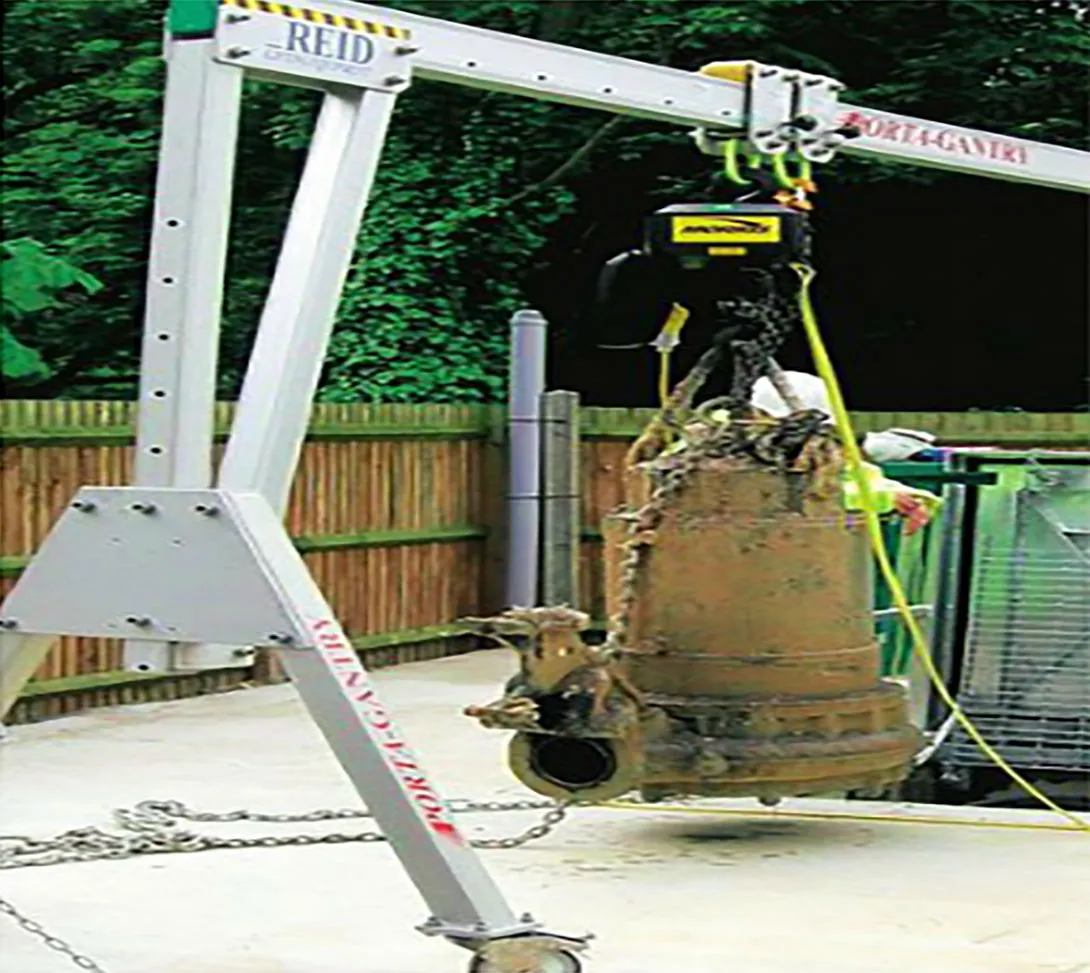

Our mobile lightweight aluminium gantry systems are a freestanding structure that you can use for lifting things including roofing materials, concrete blocks, machinery and more. The gantries come in different sizes and can hold up to 2 tonne in weight. They are lightweight and easy for you to assemble which is ideal as this means you can use the equipment in multiple locations. We advise you wear safety gear such as hard hats, gloves and protective footwear when you're using the mobile lightweight aluminium gantry.

Folds for easy transportation
Two man assembly
Lightweight rigid design
Additional beam trolley available
Working load limit (WLL) is 2 tonne - goods or man ride/fall arrest

We recommend you wear steel toe protection when using this product.
Gauntlets, PVC, cotton or rigger gloves are required with this item for hand protection.
Use only for vertical lifts. Position or suspend equipment from a safe point to take weight of load and equipment.
Do not use load cable/chain as sling. Prevent hook overcrowding, with a bow shackle. Join lifting equipment with a D shackle. Protect sharp edges to prevent load damage.
We recommend you wear steel toe protection when using this product.
7.5 Ton Truck

Mobile Lightweight Aluminium Gantries

Read reviews

Our mobile lightweight aluminium gantry systems are a freestanding structure that you can use for lifting things.

Select Size

Beam 2.5m

Beam 3.9m

Trolley 2T

Hire from

£362.68 £302.23 ex.VAT

Average hire period: 3 days

Start:

End:

You have selected a 3 day hire

Check availability

Product name: Aluminium Gantry 2.5m Beam

Product code: 69343

Folds for easy transportation
Two man assembly
Lightweight rigid design
Additional beam trolley available
Working load limit (WLL) is 2 tonne - goods or man ride/fall arrest

We recommend you wear steel toe protection when using this product.
Gauntlets, PVC, cotton or rigger gloves are required with this item for hand protection.
Use only for vertical lifts. Position or suspend equipment from a safe point to take weight of load and equipment.
Do not use load cable/chain as sling. Prevent hook overcrowding, with a bow shackle. Join lifting equipment with a D shackle. Protect sharp edges to prevent load damage.
We recommend you wear steel toe protection when using this product.
7.5 Ton Truck
