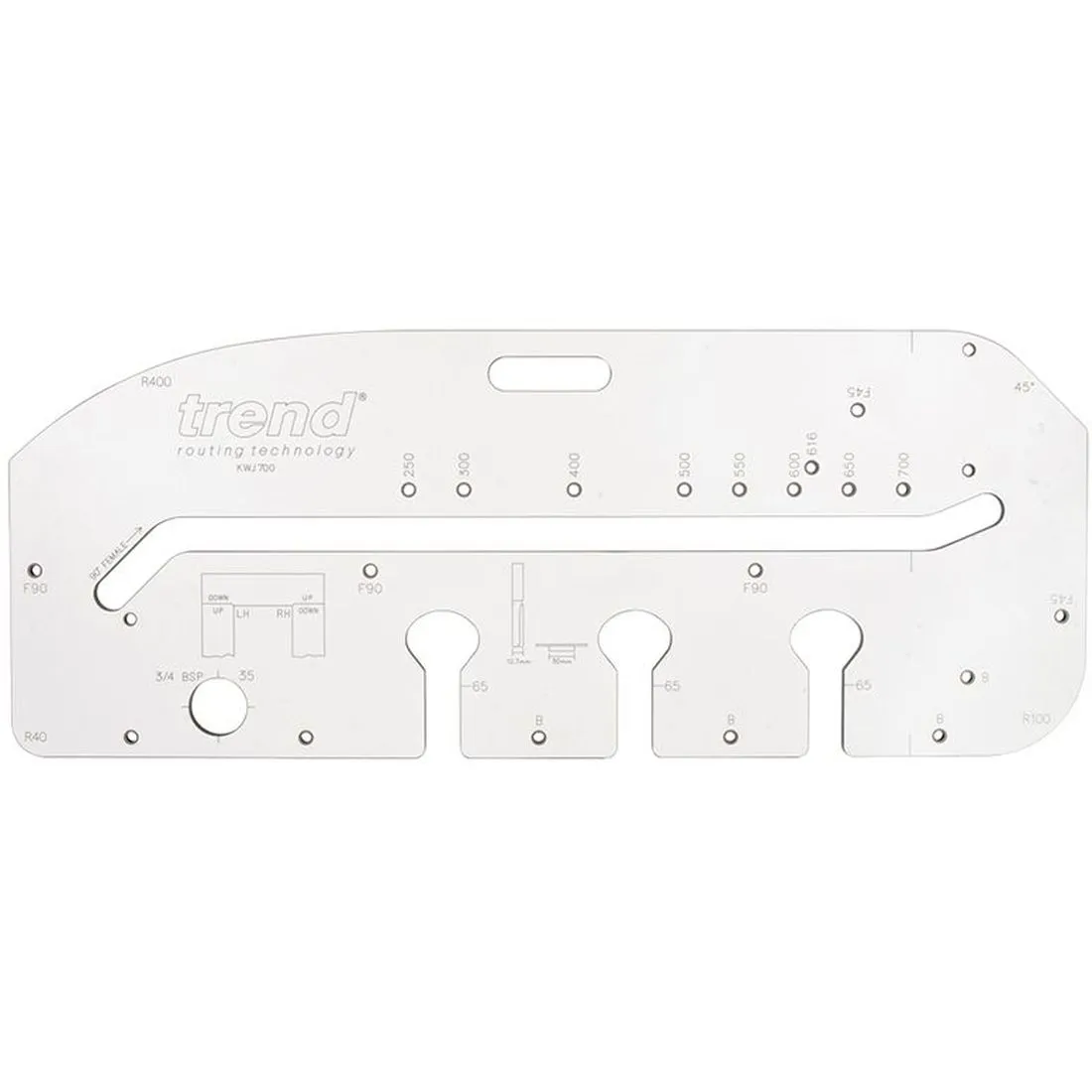

The Trend Kitchen Worktop Jig is a hard-wearing solid laminate, 12mm thick jig that enables cutting both parts of the joint in 15 minutes including setting up. The jig has the following features: Left and right hand corners, 400mm radius peninsular joint, 45‚° end cut with slight radius, 45‚° trade corner, 40mm radius corner, 35mm kitchen door hole and 3/4inch BSP hole for mixer taps. Engraved lines for 65mm bolts and worktop cross-cut. 6 x 10mm diameter ABS plastic pins with tapered shoulders for a tight fit and 3 point pin contact to ensure ease of setting up. The KWJ700 has fixed lengths for 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 650mm and 700mm worktops. Length: 985mm.Width: 390mm.Thickness: 12 mm. Weight: 5.4 kg. End Cut: 45‚°.Corner Radii: 40mm, 100mm and 400mm. Corner Mitre Joint: 45‚°.Female cut material width loss: 35 mm.
